Overview

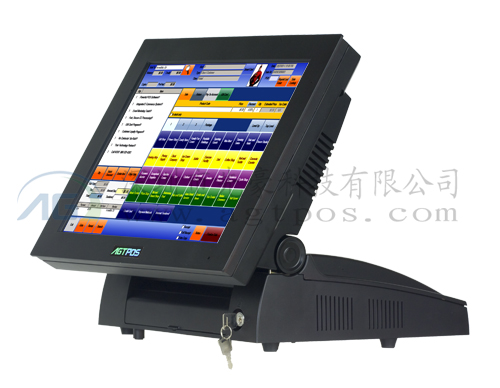

AGT-809 Series is an all-in-one, newly developed point-of-sale (POS) system integrated with 15” TFT/LCD touch screen. The system offers the best solution to retail and restaurant business. It is manufactured in Shenzhen using high-quality production methods under stringent QC procedures. Taking into consideration the three key features to the success of modern business: efficiency, accuracy and flexibility, this POS Terminal was built to satisfy both sellers and buyers.Features &Benifits
Features
|
Benefits
|
Excellent cable management hides cables from view
|
l eliminating accidental disconnection for a clean, professional look
|
Unique protective lock
|
l Prevent the illegal copies of commercial information and achieve better protection for the data.
|
Multi-angle Tilting ranging from 0-90 degree
|
l Better view for the user and good combination to the interface.
|
Stable Touch panel Firmware , Flexibility spindle to make available viewing angle
|
l Compact design looks professional and comfortable use, stable and Flexibility
|
Waterproof user interface, excellent sealing properties with the thermal dissipation window design
|
l Effectively improve reliability and prevent premature failure.
|
Slide in/out HDD replacement
|
Easy do maintenance
|
Rich I/O ports provide excellent peripheral connectivity
|
meet wide application requirements
|
Specification
Model Name
|
AGT-809B
|
Display Type
|
15” Touch screen POS
|
Colour
|
Black
|
Accessories options
|
ISO Track 1/2/3 Magnetic Stripe Reader & Customer pole display (VFD / LED8)
|
Motherboard part
| |
Main board
|
Intel® Processor due core D425
|
CPU
|
Intel® pinetrail D425 CPU dual core 1.8G
|
Chipset
|
Intel D525+NM10 chipset
|
Memory
|
DDRIII 1066/1333*1 2GB Standard memory
|
Hard driver
|
Standard 160G SATA 2.5 inch hard driver
|
Display part
| |
LCD panel size
|
15 inch TFT LCD
|
Brightness
|
250cd /㎡
|
Resolution
|
1024*768(max)
|
Touch screen
| |
Viewing Angle
|
L/R：140 U/D：130
|
Front I/O
|
USB(2.0) *2 power button*1 reset button*1
|
Rear I/O
|
PS2 mouse *1 PS2 keyboard*1
|
COM port*2
| |
LTP printer*1
| |
VGA out (15Pin D-sub)*1, duplicate and extend screen available
| |
RJ－45 network *1 RTL8111C
| |
USB（2.0）*4
| |
Audio output *1
| |
Microphone in*1
| |
DC 12V output*1
| |
OperationTemperature
|
0 ℃ to 40 ℃
|
StorageTemperature
|
-20 ℃ to 60 ℃
|
Power Supply
| |
Packing dimension
|
470*410*310(mm) ;
|
Package: carton box with Foam packaging
|
NW: 6.5KG GW:8.5KG
|
Loading quantity
|
20fcl:430PCS; 40fcl: 910PCS
|
Power Consumption
|
45W(max)
|
EMC/ Product Safety
|
FCC Class A / CE Mark / LVD / CCC
|
OS support
|
Windows XP Professional, Windows XP Embedded, WEPOS,Linux
|
Accessories
| |
AC Power Cable
|
North American and European power cables included; Other regions available upon request.
|
Driver CD
|
